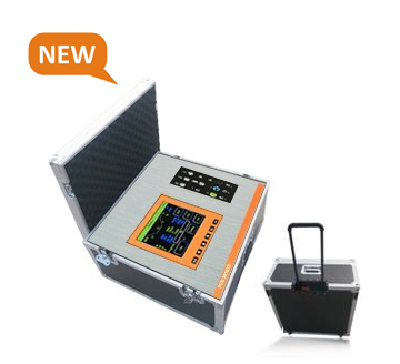

Simulation of large turbo-generator set a kind of auxiliary inverter is high, low, through the test unit. Inverter and power supply equipment external fault or disturbance caused by the transient and dynamic or long time power into high rise and fall to the line voltage regulation, low voltage auxiliary equipment device can work normally when they cross the area, ensure the safety of power supply. Simulator can not only phase splitting test, and can achieve any two phase or three phase test at the same time. PVS3816T3 equipped with 6 respectively control of semiconductor switch, each switch with electronic short circuit protection function.

GB/T 12325-2008、GB/T 12325-2008、GB/T 12326-2008、GB/T 18481-2001、DL_T_994-2006

DL/T 970—2005、DL/T 5153-2002、DL/T684-2010、DL/T 1040

1. Independent type test equipment;

2. In line with the large turbo-generator set type of high and low voltage auxiliary inverter through specification;

3. Have 6 electronic switch and short circuit protection function;

4. The nominal voltage 3 x380v;

5. The built-in automatic booster scheduling software;

6. Resistant to impact current 500 a;

7. The front panel operation;

8. Portable shell design, flexible, easy to carry to move;
