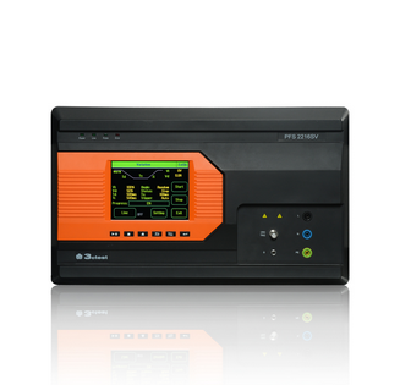

PFS single-phase power fault simulator is to simulate the electrical and electronic equipment will be affected by power grid voltage sag and short supply interruption and the influence of voltage change. The cause of the voltage variation is due to the power grid, substation equipment failure or a sudden large load changes. Test this kind of phenomenon, is to test electrical and electronic equipment to meet the voltage mutation, can avoid unsafe operating conditions. PFS2216SV equipped with 2 can respectively control semiconductor switch, can withstand the impact current moment every switch has electronic short circuit protection function at the same time. Is the domestic first to meet full compatibility with IEC 61000-4-11 test requirements.

IEC/EN 61000-4-11、IEC/EN 61000-4-29、GB/T 17626. 11、GB/T17626. 29

1.5.7 "color touch screen panel before operation;

2. The full compatibility with IEC 61000-4-11, GB/T7626.11 tests;

3. The built-in multifunctional test module combination;

4. The voltage and current measurement acquisition;

5. Test the orchestration process function;

6. RJ45 Ethernet interface for PC remote control, scheduling, print test reports.
