- Size: 1
- Place of Origin: Suzhou
- Brand Name: Ty, electronic science and technology
- Model Number: PVK
- Weight: 1.000 kg

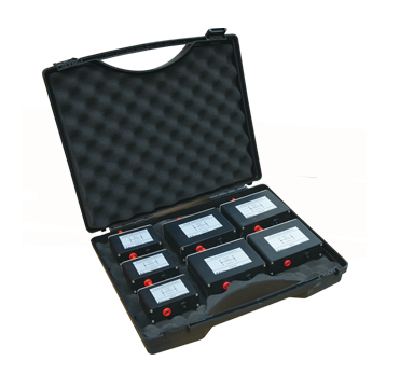

ISO7637-2 defines a lot of kinds of pulse, the pulse calibration standards must take when load. Check repeatability depends on a number of factors, including suitable oscilloscope compensation and high quality non inductive loads. Therefore, Thai, provide relevant calibration kit. These kits completely meet ISO 7637-04 appendix D I completely check the provisions of the pulse and widely used in calibration laboratory.
1. High precision non-inductive resistor
2. The coaxial terminal output interface
3. Top test voltage of the DC 1000 v
Model | Impedance[Ω] | Precision [ % ] | Rate [ W ] | Umax[Vpp] |
PVK 05 | 0.5 | 1 | 50 | 800 |
PVK 1 | 1 | 1 | 50 | 800 |
PVK 2 | 2 | 1 | 50 | 800 |
PVK 4 | 4 | 1 | 50 | 800 |
PVK 10 | 10 | 1 | 10 | 800 |
PVK 20 | 20 | 1 | 10 | 800 |
PVK 30 | 30 | 1 | 10 | 800 |
PVK 50 | 50 | 1 | 10 | 800 |
