- Size: 1
- Place of Origin: Suzhou
- Brand Name: Ty, electronic science and technology
- Model Number: BX602
- Weight: 1.000 kg

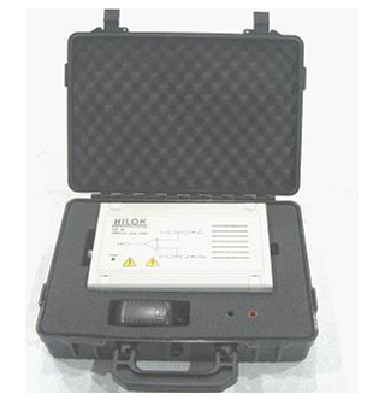

ESD calibration is the bull 's-eye BX602 coaxial electric current of the bull 's-eye, according to the EN/IEC 61000-4-2 Ed. 2 requirements, used to monitor whether electrostatic discharge the ESD pulse waveform generator output parameters meet regulatory requirements. The bull 's-eye can be purchased as appendix of electrostatic discharge generator, external (20 db) JZ602 attenuation is used to connect the input power of the oscilloscope match.
IEC 61000-4-2、EN 61000-4-2、ISO 10605、GB/T 17626.2
1. According to IEC61000-4-2:2008
2.2 Ω impedance + / - 5%;
3. The test voltage up to 30 kv;
4. The insertion loss + / 0.5 dB at 1 GHZ
5. + / 1.2 dB insertion loss in 4 GHZ
6. Including 20 dB attenuator and 1 m long coaxial cable (JZ602)
7. Optional: the bull 's-eye of calibration with conical adapters (BX602 - AD)
